Product Summary
The LM2409T is an integrated high voltage CRT driver circuit designed for use in color monitor applications. The IC contains three high input impedance, wide band amplifiers which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set to .14 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation. The applications of the LM2409T include 1024 x 768 Displays up to 70 Hz Refresh, Pixel clock frequencies up to 75 MHz, Monitors using video blanking.
Parametrics
LM2409T absolute maximum ratings: (1)Supply Voltage, (VCC): +90V; (2)Bias Voltage, (VBB): +16V; (3)Input Voltage, (VIN): 0V to 6V; (4)Storage Temperature Range, (TSTG): -65℃ to +150℃; (5)Lead Temperature(Soldering, <10 sec.): 300℃; (6)ESD Tolerance, Human Body Model: 2 kV; (7)Machine Model: 250V.
Features
LM2409T features: (1)Dissipates approximately 50% less power than the LM2406; (2)Well matched with LM1279 video preamp; (3)0V to 5V input range; (4)Stable with 0 pF–20 pF capacitive loads and inductive peaking networks; (5)Convenient TO-220 staggered lead package style; (6)Standard LM240X Family Pinout which is designed for easy PCB layout.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

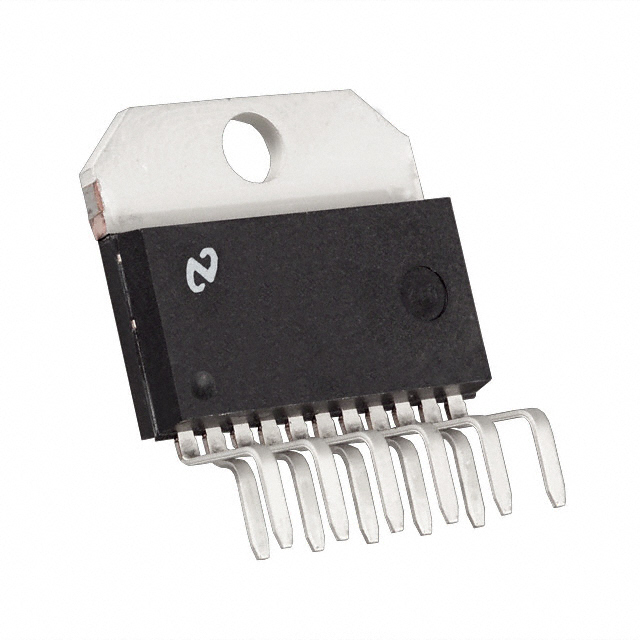

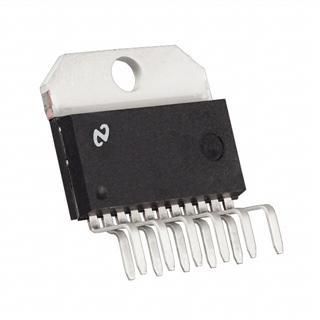

 LM2409T |
|
IC DRIVER MONOLITHIC TO-220-11 |
Data Sheet |
Negotiable |
|
||||
