Product Summary

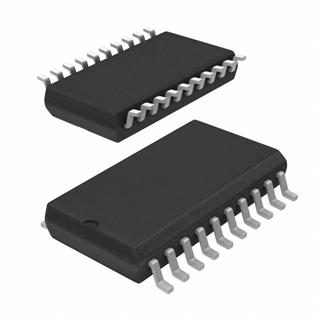

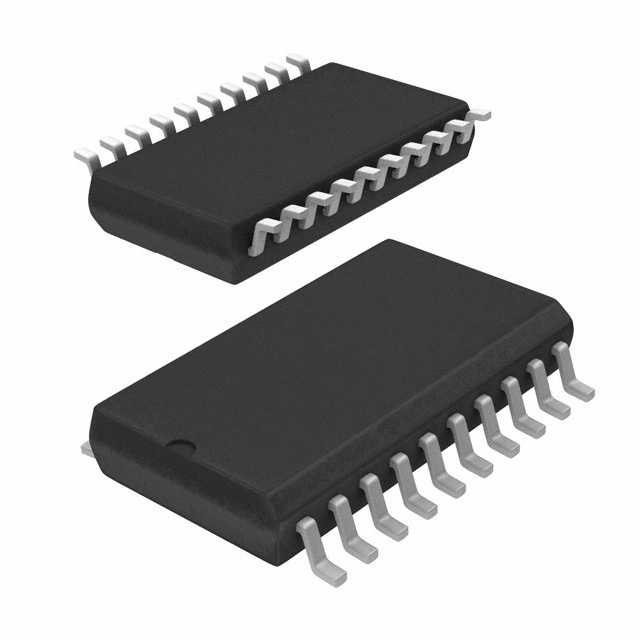

The HIP6301VCB is a control microprocessor CORE voltage regulation by driving up to four synchronous-rectified buck channels in parallel. Multiphase buck converter architecture uses interleaved timing to multiply ripple frequency and reduce input and output ripple currents. Lower ripple results in fewer components, lower component cost, reduced power dissipation, and a smaller implementation area. The HIP6301VCB is a versatile 2- to 4-phase controller.
Parametrics
HIP6301VCB absolute maximum ratings: (1)Supply Voltage, VCC: +7V; (2)Input, Output, or I/O Voltage: GND -0.3V to VCC +0.3V; (3)Supply Voltage: +5V ±5%; (4)Ambient Temperature: 0℃ to +70℃.
Features
HIP6301VCB features: (1)Multi-Phase Power Conversion; (2)Precision CORE Voltage Regulation, ±0.8% System Accuracy Over-Temperature; (3)Microprocessor Voltage Identification Input, Dynamic-VID Technology; 5-bit VID Decoder; (4)Precision Channel-Current Balance; (5)Overcurrent Protection; (6)Lossless Current Sensing; (7)Programmable droop Voltage; (8)Fast Transient Response; (9)Selection of 2-, 3-, or 4-Phase Operation; (10)High Ripple Frequency (100kHz to 6MHz); (11)Pb-Free Available (RoHS Compliant).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HIP6301VCB |
|
IC REG CTRLR BUCK PWM 20-SOIC |
Data Sheet |
Negotiable |
|
||||||
|
HIP6301VCB-T |
|
IC REG CTRLR BUCK PWM 20-SOIC |
Data Sheet |
Negotiable |
|
||||||
|
HIP6301VCBZ |
|
IC REG CTRLR BUCK PWM 20-SOIC |
Data Sheet |
|
|
||||||
|
HIP6301VCBZ-T |
|
IC REG CTRLR BUCK PWM 20-SOIC |
Data Sheet |
|
|
||||||
