Product Summary
The HIP1011CB is a PCI Hot Plug voltage bus control IC for use in modern computer systems that facilitates hot plugging of adapter cards into and out of an active or passive back plane. Along with discrete power MOSFETs and a few passive components, the HIP1011 creates a small and simple yet complete power control solution. Four independent supplies are controlled, +5V, +3.3, +12V, and -12V. The +12V and -12V switches are integrated. The applications of the HIP1011CB include PCI Hot Plug, CompactPCI.
Parametrics
HIP1011CB absolute maximum ratings: (1)VCC, 12VIN: -0.5V to +14.0V; (2)12VO: -0.5V to V12VIN +0.5V; (3)12VO, 12VG, 3V5VG: -0.5V to VCC +0.5V; (4)M12VIN: -15.0V to +0.5V; (5)M12VO, M12VG: VM12VIN -0.5V to +0.5V; (6)3VISEN, 5VISEN: -0.5V to the lesser of VCC or +7.0V; (7)Voltage, Any Other Pin: -0.5V to +7.0V; (8)12VO Output Current: 3A; (9)M12VO Output Current: 0.8A; (10)ESD Classification: 4KeV (HBM).
Features
HIP1011CB features: (1)Controls Distribution of Four Supplies: +5V, +3.3V, +12V, and -12V; (2)Internal MOSFET Switches for +12V and -12V Outputs; (3)Microprocessor Interface for On/Off Control and Fault Reporting; (4)Adjustable Overcurrent Protection for All Supplies; (5)Provides Fault Isolation; (6)Adjustable Turn-On Slew Rate; (7)Minimum Parts Count Solution; (8)No Charge Pump.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HIP1011CB |
|

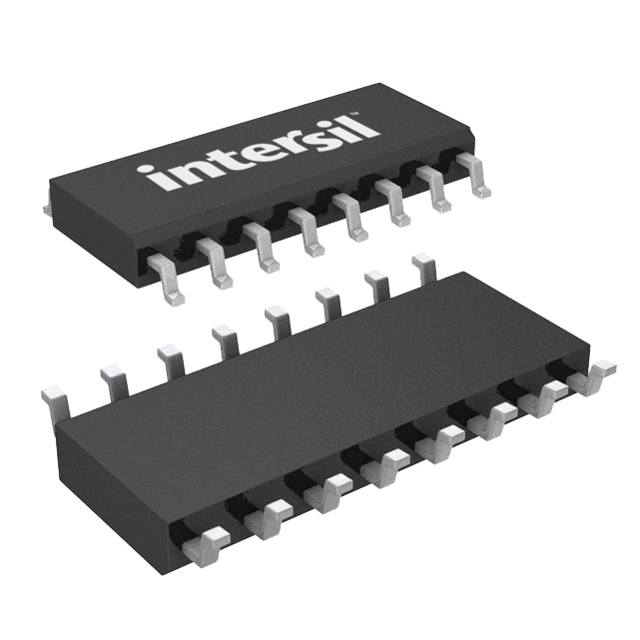

IC CTRLR HOT PLUG PCI 16-SOIC |
Data Sheet |
Negotiable |
|
||||||
|
HIP1011CB-T |
|
IC CTRLR HOT PLUG PCI 16-SOIC |
Data Sheet |
Negotiable |
|
||||||
|
HIP1011CBZA |
|
IC CTRLR HOT PLUG PCI 16-SOIC |
Data Sheet |
|
|
||||||
|
HIP1011CBZA-T |
|
IC CTRLR HOT PLUG PCI 16-SOIC |
Data Sheet |
|
|
||||||
