Product Summary
The FST3384QSCX is a 10-Bit Low Power Bus Switch provides 10 bits of highspeed CMOS TTL-compatible bus switches. The low on resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. The FST3384QSCX is organized as two 5-bit switches with separate bus enable (OE) signals. When OE is LOW, the switch is ON and Port A is connected to Port B. When OE is HIGH, the switch is OPEN and a high-impedance state exists between the two ports.
Parametrics
FST3384QSCX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to +7.0V; (2)DC Switch Voltage (VS): -0.5V to +7.0V; (3)DC Input Voltage (VIN): -0.5V to +7.0V; (4)DC Input Diode Current (IIK) VIN<0V: -50 mA; (5)DC Output (IOUT) Sink Current: 128 mA; (6)DC VCC/GND Current (ICC/IGND): ± 100mA; (7)Storage Temperature Range (TSTG): -65℃ to +150℃.
Features
FST3384QSCX features: (1)4Ω switch connection between two ports; (2)Minimal propagation delay through the switch; (3)Ultra low power with < 0.1 μA typical ICC; (4)Zero ground bounce in flow-through mode; (5)Control inputs compatible with TTL level.

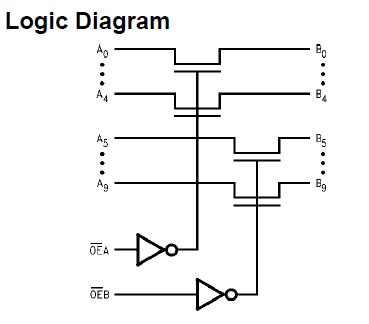

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

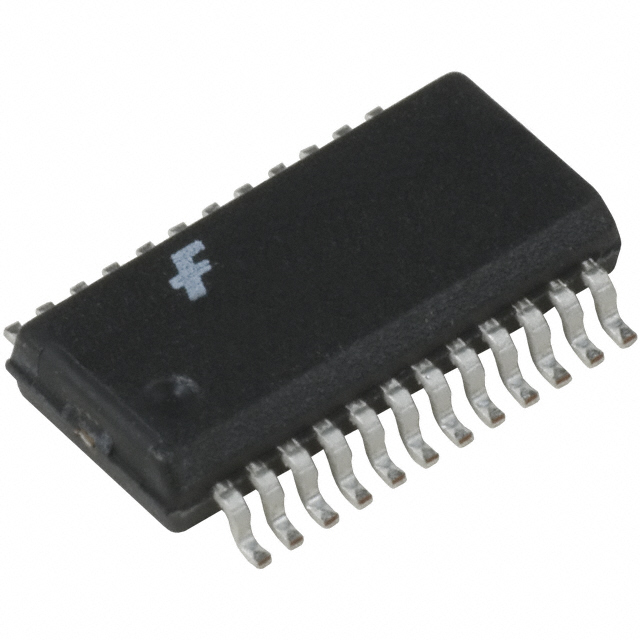

 FST3384QSCX |
Fairchild Semiconductor |
Digital Bus Switch ICs 10-Bit Bus Switch |
Data Sheet |
Negotiable |
|
||||||
