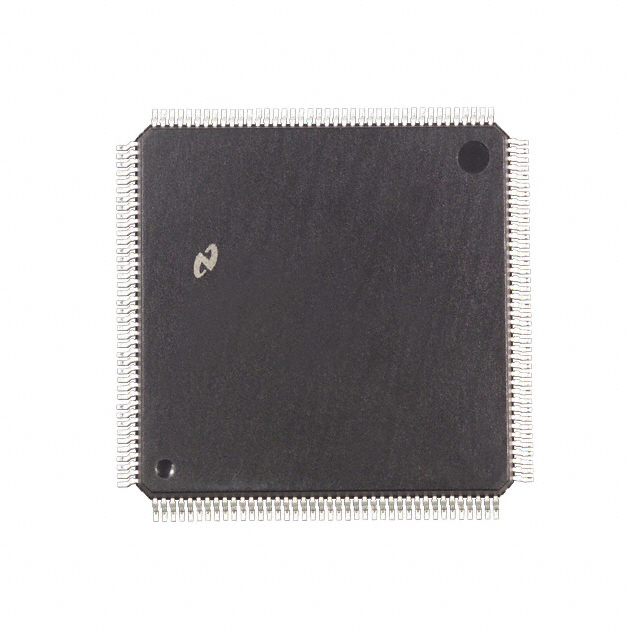

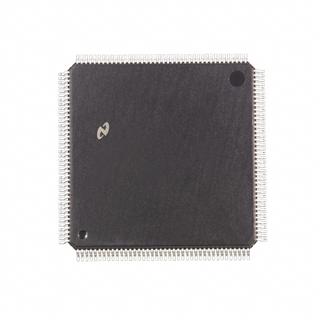

DP83934CVUL-25

DP83934CVUL-25, SONIC-T Systems-Oriented Network Interface Controller, QFP, 7V, 500mW, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~3.00

PartNumber:: DP83934CVUL-25

Brand:: National Semiconductor - NS | Pack: QFP | D/C: 00+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Anne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:DP83934CVUL-25
US $2.50 - 3.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

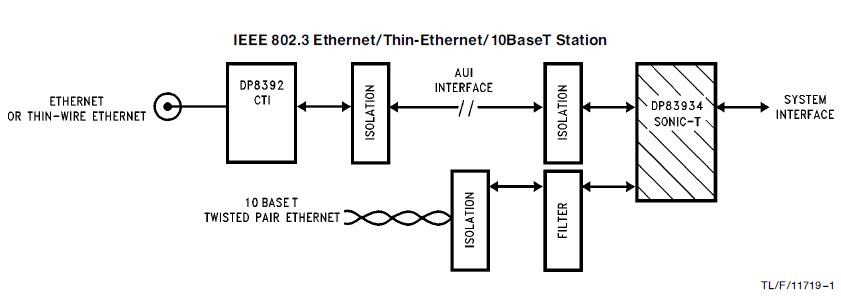

The DP83934CVUL-25 is a SONIC-T Systems-Oriented Network Interface Controller with Twisted Pair. The DP83934CVUL-25 a second-generation Ethernet Controller designed to meet the demands of today’s high-speed 32- and 16-bit systems. Its system interface operates with a high speed DMA that typically consumes less than 5% of the bus bandwidth. Selectable bus modes provide both big and little endian byte ordering and a clean interface to standard microprocessors.

Parametrics

DP83934CVUL-25 absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to 7.0V; (2)DC Input Voltage (VIN): -0.5V to VCC +0.5V; (3)DC Output Voltage (VOUT): -0.5V to VCC +0.5V; (4)Storage Temperature Range (TSTG): -65℃ to 150℃; (5)Power Dissipation (PD): 500 mW; (6)Lead Temp. (TL) (Soldering, 10 sec.): 260℃; (7)ESD Rating (RZAP = 1.5k, CZAP = 120 pF): 1.5 kV.

Features

DP83934CVUL-25 features: (1)32-bit non-multiplexed address and data bus; (2)Auto AUI/TPI selection; (3)High-speed interruptible DMA; (4)Linked-list buffer management maximizes flexibility; (5)Two independent 32-byte transmit and receive FIFOs; (6)Bus compatibility for all standard microprocessors; (7)Supports big and little endian formats; (8)Integrated IEEE 802.3 ENDEC; (9)Integrated Twisted Pair Interface; (10)Complete address filtering for up to 16 physical and/or multicast addresses; (11)32-bit general-purpose timer; (12)Loopback diagnostics; (13)Fabricated in low-power CMOS; (14)160 PQFP package; (15)Full network management facilities support the 802.3 layer management standard; (16)Integrated support for bridge and repeater applications.
