Product Summary

The BZT52C18S-7-F is a surface mount zener diode.

Parametrics

BZT52C18S-7-F absolute maximum ratings: (1)Forward Voltage (Note 2) @ IF = 10mA, VF: 0.9 V; (2)Power Dissipation, Pd: 200 mW; (3)Thermal Resistance, Junction to Ambient Air, RθJA: 625℃/W; (4)Operating and Storage Temperature Range, Tj, TSTG: -65 to +150℃.

Features

BZT52C18S-7-F features: (1)Planar Die Construction; (2)Ultra-Small Surface Mount Package; (3)Ideally suited for Automated Assembly Processes; (4)Lead Free/RoHS Compliant; (5)Qualified to AEC-Q101 Standards for High Reliability.

Diagrams

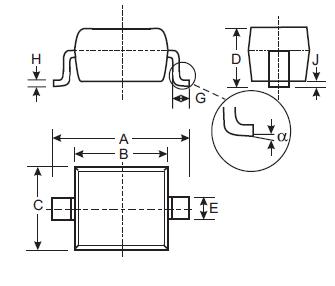

BZT52C18S-7-F block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BZT52C18S-7-F
BZT52C18S-7-F
Diodes Inc.
Zener Diodes 18V 200mW
Data Sheet
0-1: $0.30
1-10: $0.20
10-100: $0.07
100-250: $0.05
