Product Summary
The AT91SAM7SE32-AU is a thumb-based microcontroller. The AT91SAM7SE32-AU features a 32 Kbyte high-speed Flash and an 8 Kbyte SRAM. The AT91SAM7SE32-AU also embeds a large set of peripherals, including a USB 2.0 device, an External Bus Interface (EBI) , and a complete set of system functions minimizing the number of external components.
Parametrics
AT91SAM7SE32-AU absolute maximum ratings: (1) Voltage Regulator and ADC Power VDDIN Supply Input: 3 to 3.6V; (2) Voltage Regulator Output VDDOUT: 1.85V; (3) Flash and USB Power Supply VDDFLASH: 3 to 3.6V; (4) I/O Lines Power Supply VDDIO: 3V to 3.6V or 1.65V to 1.95V; (5) Core Power Supply VDDCORE: 1.65V to 1.95V; (6) PLL VDDPLL: 1.65V to 1.95V.
Features
AT91SAM7SE32-AU features: (1) Incorporates the ARM7TDMI ARM Thumb Processor; (2) Internal High-speed Flash; (3) 32 Kbytes (AT91SAM7SE512/256) or 8 Kbytes (AT91SAM7SE32) of Internal High-speed SRAM, Single-cycle Access at Maximum Speed; (4) Memory Controller (MC) ; (5) Reset Controller (RSTC) ; (6) One Four-channel 16-bit PWM Controller (PWMC) ; (7) Four High-current Drive I/O lines, Up to 16 mA Each; (8) Four High-current Drive I/O lines, Up to 16 mA EachOne Four-channel 16-bit PWM Controller (PWMC) .

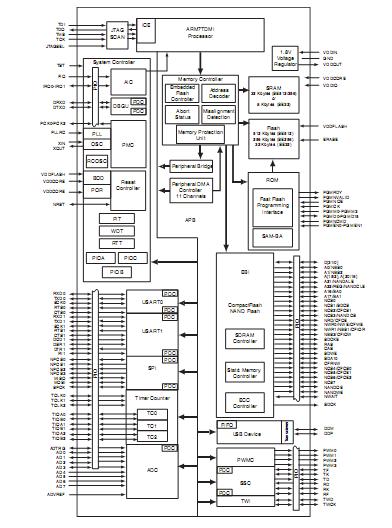

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT91SAM7SE32-AU |
Atmel |
ARM Microcontrollers (MCU) LQFP IND TEMP |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
AT91C140 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
AT91CAP7A-DK18 |
Atmel |
Emulators / Simulators EMULATION CARD |
Data Sheet |
Negotiable |
|
||||||||||||
|
AT91CAP7A-DK33 |
Atmel |
Emulators / Simulators EMULATION CARD |
Data Sheet |
Negotiable |
|
||||||||||||
|
AT91CAP7A-NA-STK |
Atmel |
Development Boards & Kits - ARM ARM7-based CAP Starter Kit |
Data Sheet |
Negotiable |
|
||||||||||||
|
AT91CAP7A-STK |
Atmel |
Development Boards & Kits - ARM ARM7 -based CAP Starter Kit |
Data Sheet |
Negotiable |
|
||||||||||||
 |
AT91CAP7E-NA-ZJ |
Atmel |
ARM Microcontrollers (MCU) CAP7 EMULATION DEVIC |
Data Sheet |
Negotiable |
|
||||||||||||
