AT25080AN-10SI-2.7

AT25080AN-10SI-2.7, SPI Serial EEPROM, SOIC, -1.0V to +7.0V, 5mA, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.58~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2500 :	0.65 / Piece
2500 ~ 10000 :	0.60 / Piece
10000 ~ 50000 :	0.58 / Piece

PartNumber:: AT25080AN-10SI-2.7

Brand:: ATMEL Corporation - ATMEL | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 50000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Anne's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-03

From Other Seller

Part Number:AT25080AN-10SI-2.7
US $0.58 - 0.65
Quantity:

piece

Product Summary

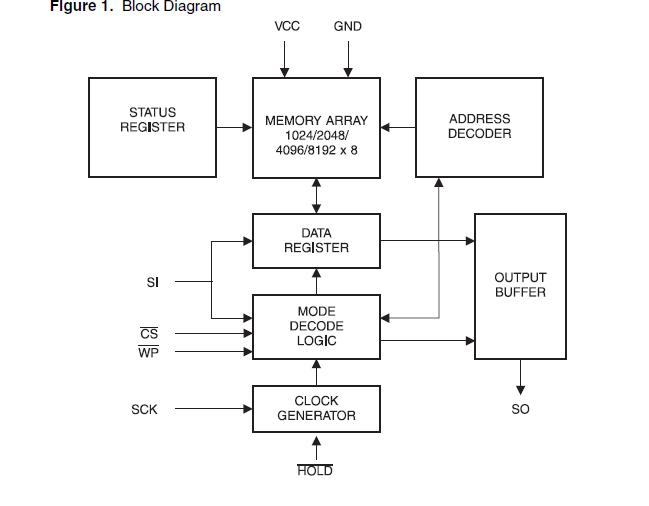

The AT25080AN-10SI-2.7 is a SPI Serial EEPROM. The AT25080AN-10SI-2.7 provides 8192 bits of serial electrically-erasable programmable read-only memory (EEPROM) organized as 1024 words of 8 bits each. The device is optimized for use in many automotive applications where low-power and low-voltage operation are essential. The AT25080AN-10SI-2.7 is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC and 8-lead TSSOP packages. The AT25080AN-10SI-2.7 is enabled through the Chip Select pin (CS) and accessed via a three-wire interface consisting of Serial Data Input (SI), Serial Data Output (SO), and Serial Clock (SCK). All programming cycles are completely selftimed, and no separate erase cycle is required before write.

Parametrics

AT25080AN-10SI-2.7 absolute maximum ratings: (1)Operating Temperature: -40℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin; (4)with Respect to Ground: -1.0V to +7.0V; (5)Maximum Operating Voltage: 6.25V; (6)DC Output Current: 5.0 mA.

Features

AT25080AN-10SI-2.7 features: (1)Serial Peripheral Interface (SPI) Compatible; (2)Supports SPI Modes 0 (0,0) and 3 (1,1); (3)Data Sheet Describes Mode 0 Operation; (4)Medium-voltage and Standard-voltage Operation; (5)2.7 (VCC = 2.7V to 5.5V); (6)Extended Temperature Range -40℃ to 125℃; (7)5.0 MHz Clock Rate; (8)32-byte Page Mode; (9)Block Write Protection; (10)Protect 1/4, 1/2, or Entire Array; (11)Write Protect (WP) Pin and Write Disable Instructions for Both Hardware and Software Data Protection; (12)Self-timed Write Cycle (2 ms [5V] typical); (13)High Reliability; (14)Endurance: One Million Write Cycles; (15)Data Retention: 100 Years; (16)8-lead PDIP, 8-lead JEDEC SOIC Packages and 8-lead TSSOP Packages.
