Product Summary
The AD9958BCPZ is a 2-Channel 500 MSPS DDS with 10-Bit DACs. The AD9958BCPZ consists of two DDS cores that provide independent frequency, phase, and amplitude control on each channel. This flexibility can be used to correct imbalances between signals due to analog processing such as filtering, amplification, or PCB layout related mismatches. Since both channels share a common system clock, they are inherently synchronized. Synchronization of multiple devices is supported.
Parametrics
AD9958BCPZ absolute maximum ratings: (1)Maximum Junction Temperature: 150℃; (2)DVDD_I/O (Pin 49): 4 V; (3)AVDD, DVDD: 2 V; (4)Digital Input Voltage (DVDD_I/O = 3.3 V): -0.7 V to +4 V; (5)Digital Output Current: 5 mA; (6)Storage Temperature: -65℃ to +150℃; (7)Operating Temperature: -40℃ to +85℃; (8)Lead Temperature (10 sec Soldering): 300℃; (9)θJA: 21℃/W; (10)θJC: 2℃/W.
Features
AD9958BCPZ features: (1)2 synchronized DDS channels @ 500 MSPS; (2)Independent frequency/phase/amplitude control between channels; (3)Matched latencies for frequency/phase/amplitude changes; (4)Excellent channel-to-channel isolation (>72 dB); (5)Linear frequency/phase/amplitude sweeping capability; (6)Up to 16 levels of frequency/phase/amplitude modulation (pin-selectable); (7)2 integrated 10-bit D/A converters (DACs); (8)Individually programmable DAC full-scale currents; (9)32-bit frequency tuning resolution; (10)14-bit phase offset resolution; (11)10-bit output amplitude scaling resolution; (12)Serial I/O Port (SPI) with 800Mbps data throughput; (13)Software-/hardware-controlled power-down; (14)Dual supply operation (1.8 V DDS core/3.3 V serial I/O); (15)Multiple device synchronization; (16)Selectable 4× to 20× REF_CLK multiplier (PLL); (17)Selectable REF_CLK crystal oscillator; (18)56-Lead LFCSP.

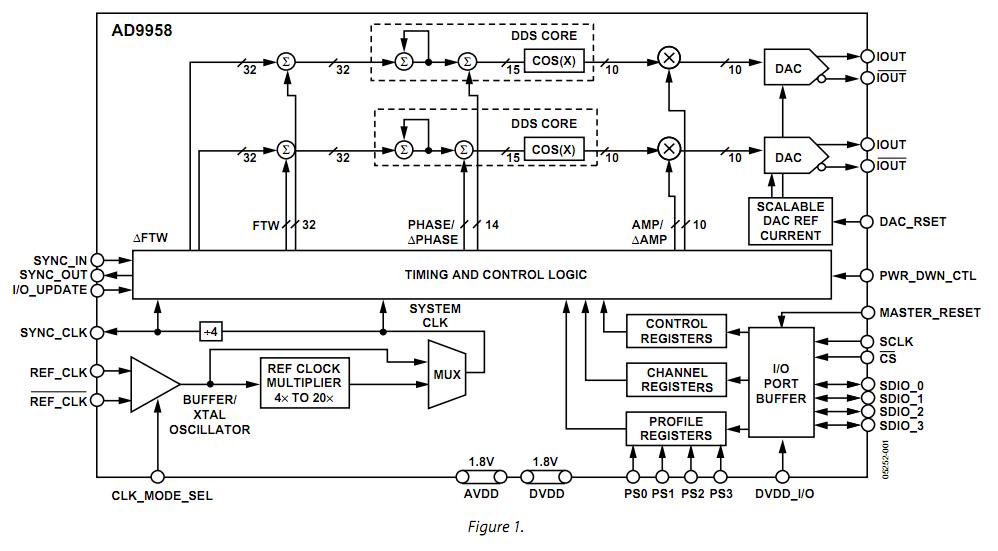

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9958BCPZ |
|
IC DDS DUAL 500MSPS DAC 56LFCSP |
Data Sheet |
|
|
||||||||||||||
|
AD9958BCPZ-REEL7 |
|
IC DDS DUAL 10BIT DAC 56LFCSP |
Data Sheet |
|
|
||||||||||||||
