Product Summary

The TG80960JT100 is an Embedded 32-bit microprocessor. The TG80960JT100 offers high performance to cost-sensitive 32-bit embedded applications. The TG80960JT100 is object code compatible with the 80960 Core Architecture and is capable of sustained execution at the rate of one instruction per clock. This processor’s features include generous instruction cache, data cache and data RAM. It also boasts a fast interrupt mechanism and dual-programmable timer units. The TG80960JT100’s clock multiplication operates the processor core at two or three times the bus clock rate to improve execution performance without increasing the complexity of board designs.

Parametrics

TG80960JT100 absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Case Temperature Under Bias: -65℃ to +110℃; (3)Supply Voltage wrt. VSS: -0.5 V to +4.6 V; (4)Voltage on VCC5 wrt. VSS: -0.5 V to +6.5 V; (5)Voltage on Other Pins wrt. VSS: -0.5 V to VCC +0.5V.

Features

TG80960JT100 features: (1)Pin/Code Compatible with all 80960Jx Processors; (2)High-Performance Embedded Architecture, One Instruction/Clock Execution; Core Clock Rate is: 80960JD 2x the Bus Clock; Load/Store Programming Model; Sixteen 32-Bit Global Registers; Sixteen 32-Bit Local Registers (8 sets); Nine Addressing Modes; User/Supervisor Protection Model; (3)Two-Way Set Associative Instruction Cache; (4)Direct Mapped Data Cache; (5)On-Chip Stack Frame Cache; (6)On-Chip Data RAM; (7)3.3 V Supply Voltage; (8)High Bandwidth Burst Bus; (9)High-Speed Interrupt Controller; (10)Two On-Chip Timers; (11)Halt Mode for Low Power; (12)IEEE 1149.1 (JTAG) Boundary Scan Compatibility.

Diagrams

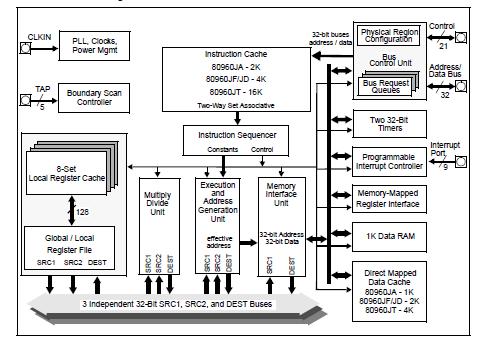

TG80960JT100 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TG80960JT100
TG80960JT100

IC MPU I960JT 3V 100MHZ 132-QFP
Data Sheet
Negotiable
