Product Summary
The SI4426DY-T1-E3 is an N-Channel 20V(D-S) MOSFET.
Parametrics
SI4426DY-T1-E3 absolute maximum ratings: (1)Source Voltage, VDS: 20V; (2)Gate-Source Voltage, VGS: ±12V; (3)Continuous Drain Current (TJ = 150℃), ID: ±8.5A; (4)Pulsed Drain Current (10 μs Pulse Width), IDM: ±40A; (5)Continuous Source Current (Diode Conduction), IS: 2.1A; (6)Maximum Power Dissipationa, PD: 2.5W; (7)Operating Junction and Storage Temperature Range, TJ, Tstg: -55 to 150℃.
Features
SI4426DY-T1-E3 features: (1)Maximum Junction-to-Ambienta, t ≤ 10 sec, RthJA: 50℃/W; Steady State: 70℃/W; (2)Maximum Junction-to-Foot (Drain) Steady State, RthJF: 20℃/W.

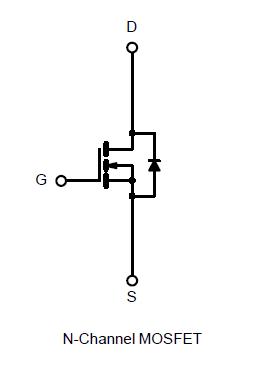

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SI4426DY-T1-E3 |
Vishay/Siliconix |
MOSFET 20V 8.5A 2.5W |
Data Sheet |
|
|
||||||||||||
