Product Summary
The ISP1362BDFA is a single-chip universal serial bus on-the-go controller. The ISP1362BDFA is compliant with On-The-Go Supplement to the USB2.0 Specifcation Rev. 1.0a. The ISP1362BDFA has two USB ports: port1 and port 2. Port 1 can be hardware configured to function as a downstream port, an upstream port or an OTG port whereas port 2 can only be used as a downstream port. The ISP1362BDFA can be used to implement a dual-role USB device in any application- USB host or USB peripheral-depending on the cable connection.
Parametrics
ISP1362BDFA absolute maximum ratings: (1) supply voltage VCC: -0.5 to +6.0V; (2) input voltage: -0.5 to +6.0V; (3) latch-up current VI <0 or VI >Vcc: 100mA; (5) electrostatic discharge voltage: -2000 to +2000V ( ILI<1μA) ; (6) storage temperature: -60 to +150°C.
Features
ISP1362BDFA features: (1) Supports two USB ports: port 1 and port 2; (2) Supports software-controlled connection to the USB bus (SoftConnect) ; (3) Supports good USB connection indicator that blinks with traffic (GoodLink) ; (4) Complies with USB power management requirements; (5) Supports ProgrammedI/O (PIO) or Direct Memory Access (DMA) ; (6) Uses 12MHz crystal or direct clock source with on-chip Phase-Locked Loop (PLL) for low Electro-Magnetic Interference (EMI) ; (7) Operating temperature range from: -40 to +85°C; (8) Available in 64-pin LQFP and TFBGA packages.

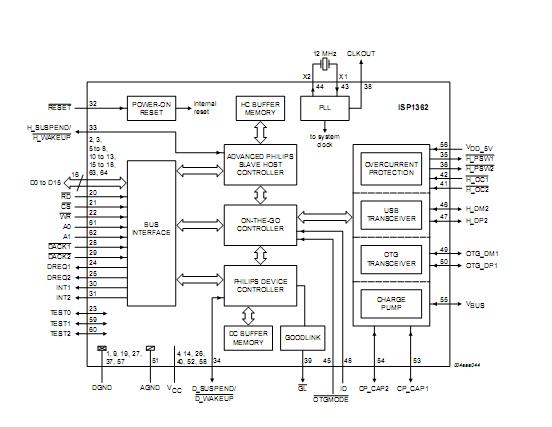

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISP1362BDFA |
|
IC USB OTG CONTROLLER 64-LQFP |
Data Sheet |
Negotiable |
|
||||||
