Product Summary

The BTS824R is an N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. The applications of the BTS824R include µC compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads, All types of resistive, inductive and capacitve loads, Most suitable for loads with high inrush currents, so as lamps, Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS824R absolute maximum ratings: (1)Operating Voltage, Vbb: 5.5 to 40V; (2)On-state Resistance, RON: 90mΩ to 22.5mΩ; (3)Nominal load current, IL(NOM): 4.7A to 19.0A; (4)Current limitation, IL(SCr): 12A.

Features

BTS824R features: (1)Very low standby current; (2)CMOS compatible input; (3)Improved electromagnetic compatibility (EMC); (4)Fast demagnetization of inductive loads; (5)Stable behaviour at undervoltage; (6)Wide operating voltage range; (7)Logic ground independent from load ground.

Diagrams

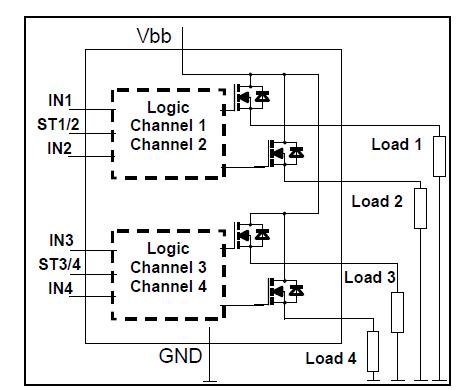

BTS824R block diagram
