Product Summary
The 1206L012WR is a tape and reel, PTC RESET. It provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired. The 1206L012WR can be applied in USB peripherals, disk srives, mobile phones-battery and port protection, and game console port protection.
Parametrics
1206L012WR absolute maximum ratings: (1)operating/storage temperature: -40°C to +85°C; (2)maximum device surface temperature in tripped state: 125°C; (3)passive aging: +85°C, 1000 hours -/+5% typical resistance change; (4)thermal shock:MIL-STD-202，Method 107G +85°C/-40°C 20 times; (5)solvent resistance: MIL-STD-202，Method 215 No change; (6)vibration: MIL-STD-883C, Method 2007.1 condition A No change.
Features
1206L012WR features: (1)RoHs compliant, lead-free and halogen-free; (2)fast response to fault currents; (3)compact design saves board space; (4)low resistance; (5)low-profile; (6)compatible with high temperature solders.

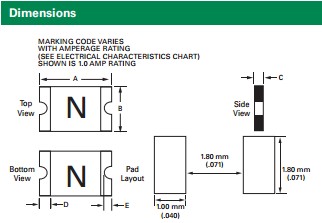

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1206L012WR |
Littelfuse |
PTC Resettable Fuses 30V 1206 .125A SURF MOUNT |
Data Sheet |
|
|
||||||||||||
